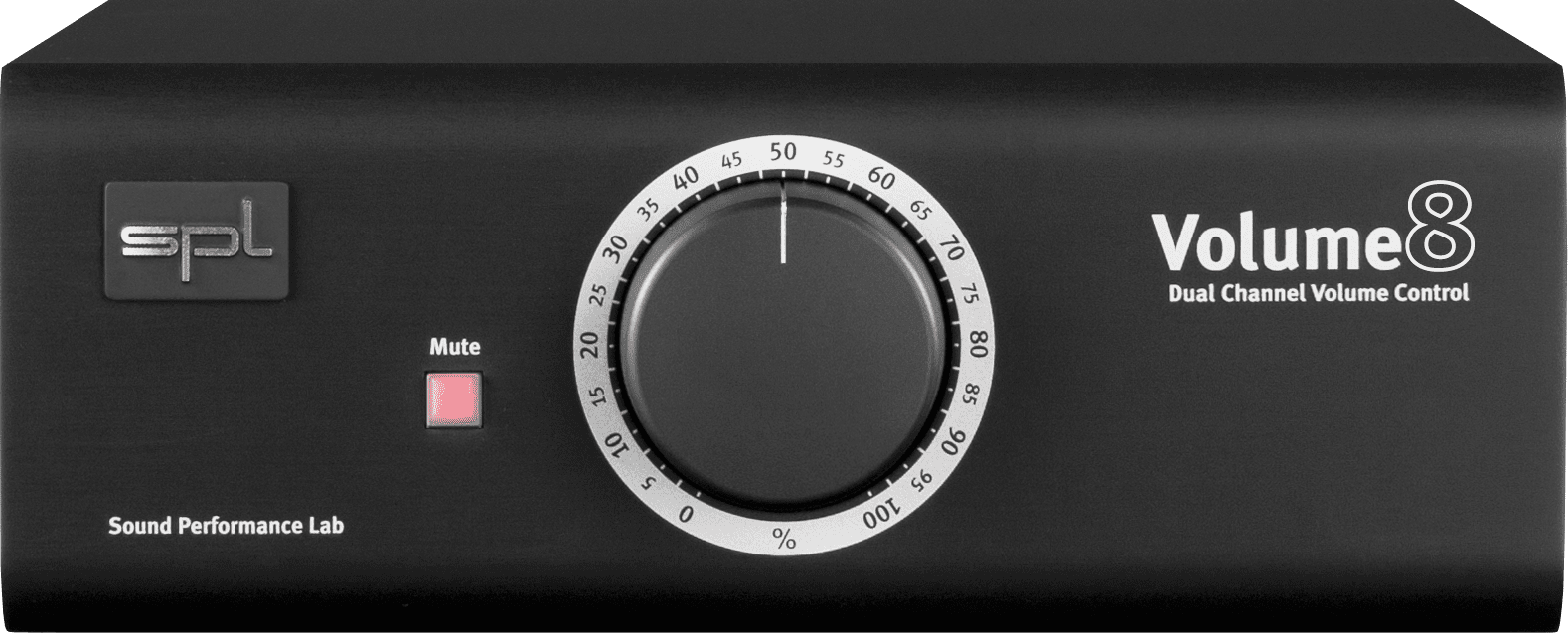

Контролер SPL Volume 8

Описание

As a cost-effective alternative to our full-featured surround monitoring controllers SMC and SMC the Volume 8 focusses on the high quality active volume control. Users who do not need additional monitoring functionality will find the Volume 8 an cost-effective solution without compromises for 5.1 and 7.1 surround monitoring.

Спецификации
  • Instrumentation amplifier, electronically balanced (differential), transformerless
  • Nominal input level: +4dBu
  • Input impedance: =22kOhm
  • Output impedance: ‹600Ohm
  • Max. input level: ›+20dBu
  • Volume control range: -80dB bis -4dB
  • Frequency range: 10Hz-100kHz (100kHz = -3dB)
  • CMRR: ›60dBu@1kHz
  • THD & N (at +15dBu input level): ›-100dBu
  • S/N (A-weighted): -102dBu
  • Crosstalk L/R (at 1kHz): ›-80dBu
  • Dynamic range: 120dB
  • Toroidal transformer: 15VA
  • Fuses: 250mA (230V), 500mA (115V)
  • Voltage selector: 230V/50Hz; 115V/60Hz
  • Power consumption: 15W
Още

Допълнителна информация

Документи за сваляне и драйвери
В кутията
  • SPL Volume 8
  • захранване
  • упътване
Гаранция

2 години.

За производителя

For more than 30 years Sound Performance Lab From Germany developes audio gear for music,film,multimedia,hifi and broadcast. Milestones of the company’s R&D history were:

  • the invention of the patented Vitalizer® sound optimization
  • the invention of the Transient Designer – the mother of all transient designing tools
  • the invention of the Auto-dynamic De-Esser – eliminating S-sounds by phase cancellation
  • the launch of the world’s first discrete 5.1 surround miking system Atmos 5.1 already in 1998
  • the development of the SPL 120V rail op-amps which are the integral components of the top-of-line SPL products, setting new benchmarks in audio signal processing to outperform any existing analog or digital audio format.
  • the invention of the Phonitor matrix that produces a loudspeaker equivalent playback on headphones.
Код: 2169 On Back Order
1200,00 лв.
Закупувайки този продукт вие получавате:

Гаранция за физическо лице: 24 м. (гаранцията не важи за аксесоари и кабели)Безплатна доставка при поръчка на стойност над 100 лв.Проверка на пратката и 14 дни право на връщане.
