DAW контролер SSL UF1

Описание

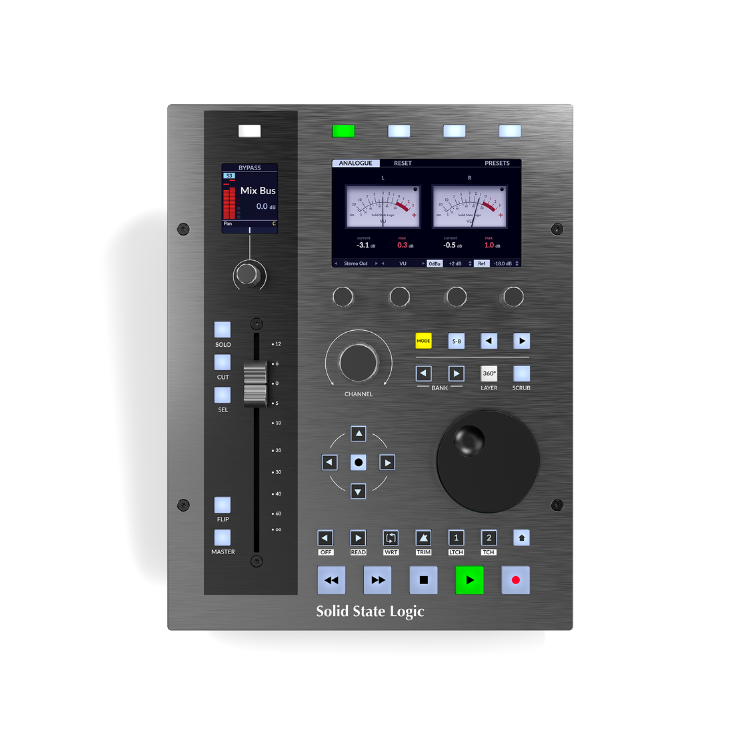

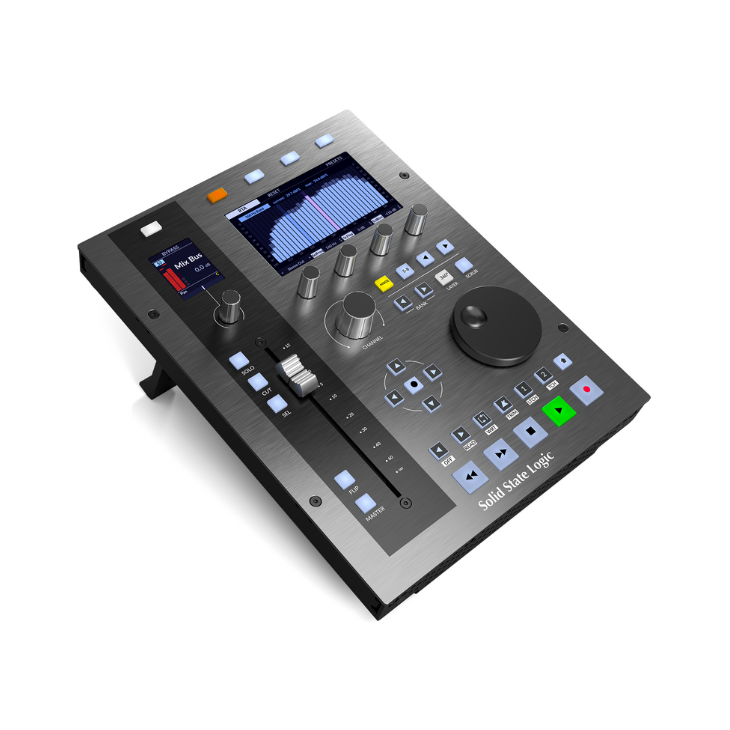

UF1 DAW Control Centre

UF1 is the ultimate single fader controller for anyone who wants comprehensive control of their DAW, bringing SSL’s renowned advanced workflow to in-the-box productions. UF1 boasts a premium 100 mm motorized fader, dual high-resolution displays, soft-feel durable rubber keys and a weighted jog wheel, all encased in a robust metal chassis. UF1 offers complete control of a DAW’s pans, sends, plug-in control and more, plus the ability to customise 46 soft keys specifically to your workflow. Clear and insightful visual feedback, intuitive control and deep integration with the SSL Meter Plug-in and SSL 360° software – UF1 offers power and control never seen before from a controller of this size.

1 To Control Them All

100 mm Motorised Fader

Quality feel, engineered response and a volume curve that keeps engineers in the sweet spot. Anyone who has driven an SSL console knows not all faders are equal.

Transport & Jog Wheel

Dedicated transport controls and a weighted jog wheel make moving around large sessions quick and efficient. Secondary transport keys can be customised to essential workflow shortcuts such as loop on/off or press the shift button to access DAW automation.

1.7” and 4.3” LCD TFT Displays

UF1’s dual high-resolution displays provide in-depth visual feedback of DAW track names, parameters, time display, the SSL Meter plug-in and 360-enabled channel strips in the SSL Plug-in Mixer.

Multi-Purpose Large Encoder

UF1’s large, multi-purpose notched encoder allows for channel banking, mouse wheel emulation (Focus mode) and control of computer system volume.

Human Engineering

For perfect positioning, each UF1 includes a pair of adjustable stands allowing for six different angles of elevation for user defined placement.

Customised Workflow

UF1 is powered by SSL 360° software where you can configure keyboard shortcuts and custom macros for total session control via 46 assignable, backlit user keys.

More

• Transport buttons and weighted jog/scrub wheel
• Touch-sensitive 100 mm motorized fader
• 4 + 1 knobs with push function
• 2 High-resolution TFT LC color displays (4.3″ / 1.77″) for displaying track names, parameters, SSL meter plug-in details, among other things
• Illuminated RGB “Soft Feel” buttons
• Metal body with brushed anodized top panel
• Control up to 3 different DAWs simultaneously
• HUI and MCU DAW Profiles for Pro Tools, Logic, Cubase, Studio One, Ableton Live, LUNA, Pyramix
• Multifunctional, rasterized master encoder for comfortable DAW navigation, track banking and mouse wheel emulation
• 46 Individually assignable buttons for frequently used shortcuts/macros
• 2 Footswitch connectors
• Computer connection via USB
• Programming via SSL 360° software for Mac and PC
• Standalone operation or can be combined with up to four SSL UF8 and one SSL UC1
• Dimensions (W x D x H): 205 x 266 x 62.7 mm
• Weight: 2.9kg
• Includes adjustable feet and software license for the SSL meter plug-in

Още

Допълнителна информация

Гаранция

2 години.

За производителя

SSL съкратено от Solid State Logic е английска компания основана през 1969 г. В момента тя е научен парк в Оксфордшир, Англия и е разположеа на площ от 15 акра (61,000 m²). Компанията изобретява, проектира и произвежда технология за обработка и продукция на звук и видео. Една от първите конзоли на SSL (всъщност първата в Англия и втората продадена) е 4000B, монтирана в Townhouse Studios на Goldhawk Road в Лондон.
