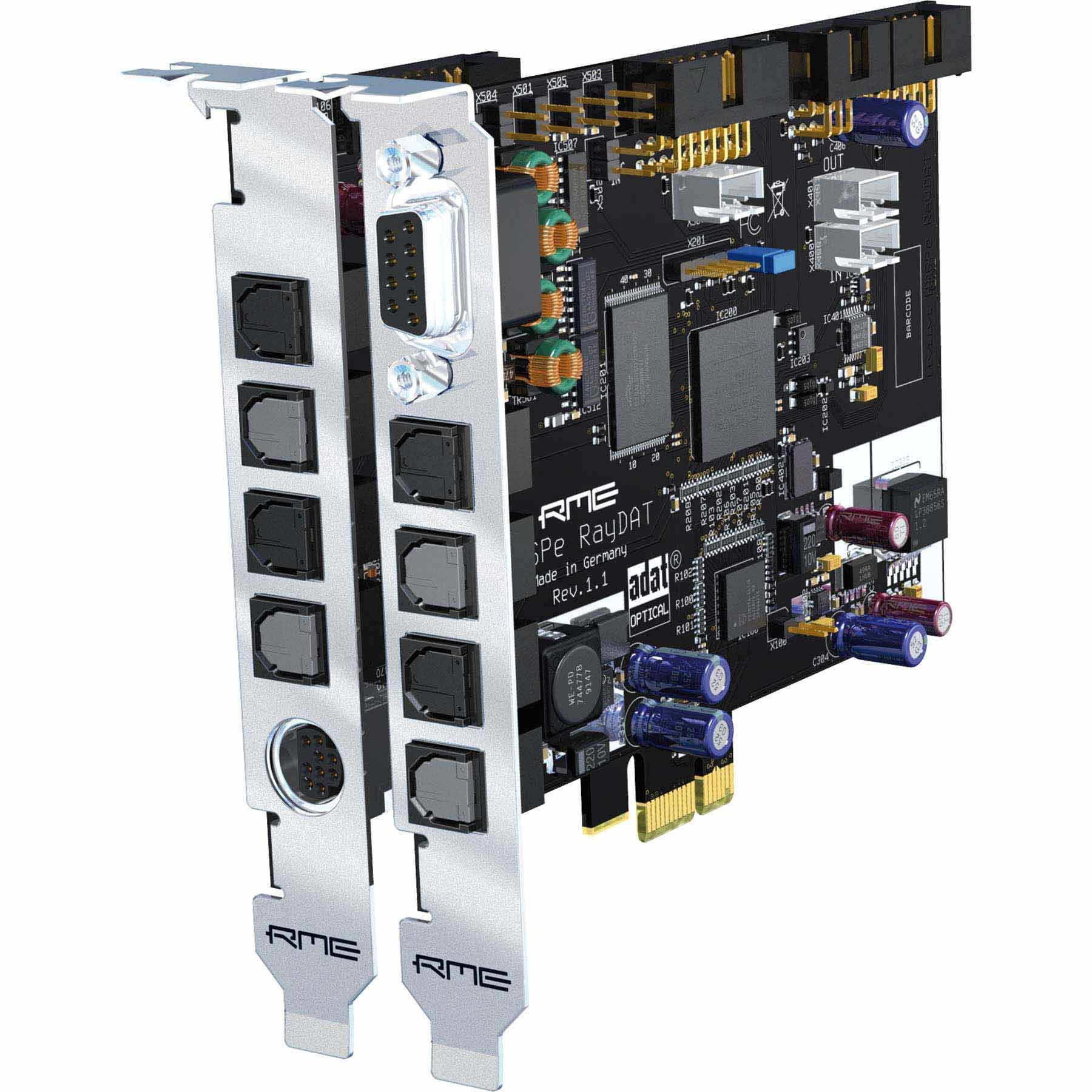

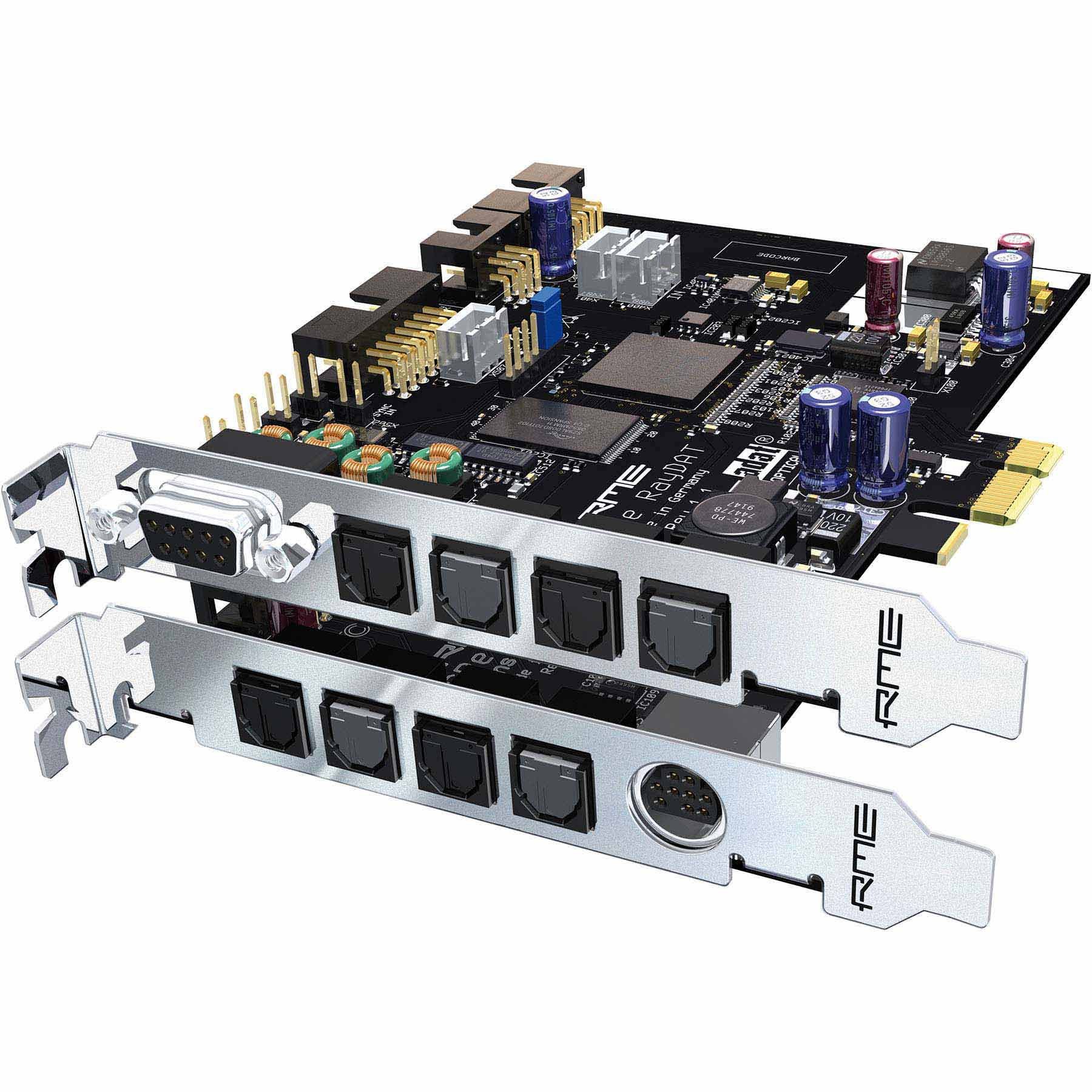

PCle карта RME HDSPe RayDat
Описание
HDSPe RayDAT is a multi-channel, multi-format and multi-task tool in stunning professional quality, the ideal solution from recording up to the final mastering. For the first time, even SPDIF (phono) and AES/EBU (XLR) are simultaneously operational due to separated hardware and record/playback devices. RayDAT offers no less than 4 x ADAT optical I/O, SPDIF I/O and AES/EBU I/O. That’s a whopping 36 channels of inputs and outputs. On top, there are 2 MIDI I/Os and TotalMix, RME’s unsurpassed DSP-based real-time mixer/router, with hardware-calculated level metering and complete MIDI remote capability. HDSPe RayDAT also supports the optional TCO for synchronization to timecode (LTC/video).
Internal ADAT inputs and outputs allow to add up to two TDIF ports directly inside the computer via RME’s optional expansion boards.
HDSPe RayDAT is the newly developed PCI Express version of the HDSP 9652. A genuine PCI Express core consequently takes full advantage of the new format, achieving significant performance gains in multitrack audio. Thanks to RME’s secure flash update technology, firmware improvements, adjustments, and bugfixes can be installed easily at any time.
Features
Differences to HDSP 9652
- PCI Express interface
- Additional (fourth) ADAT I/O
- S/PDIF and AES/EBU I/O
simultaneously operational - Sample rates up to 192 kHz
- even lower latencies
- Greatly enhanced TotalMix
- Word Clock I/O via optional expansion board
- direct support of HDSP TCO
- No ADAT Sync port (D-sub)
The HDSPe RayDAT provides unique features:
- 4 x ADAT digital I/O, supporting 192 kHz via S/MUX4 operation
- 1 x SPDIF digital I/O, 192 kHz-capable
- 1 x AES/EBU digital I/O, 192 kHz-capable
- 2 x MIDI I/O, 32 channels high-speed MIDI via breakout cable
- Up to 36 inputs and 36 outputs can be used simultaneously!
- DIGICheck, RME’s unique metering- and analysing tool
- TotalMix: 2592 channel mixer with 42 bit internal resolution
- Native PCI Express – no PCI to PCI Express bridge used
- S/MUX poured in hardware: 16 channels 24-bit/96kHz for record and playback on ADAT optical
HDSPe RayDAT includes SteadyClockTM, RME’s own clock technology, combining professional features like maximum jitter suppression at full varipitch capabilities and software controlled sample rates.
Included software:
DIGICheck for Windows: Spectral Analyser, professional level meter for 2, 8, or 36 channels, Vector Audio Scope, various other audio analysis tools.
Drivers: Windows 2000/XP/Vista/7/64 (full ASIO multi-client operation of WDM, GSIF 2.1 and ASIO 2.0), Mac OS X Intel (Core Audio and Core MIDI).
Settings
Just click on the hammer symbol in the systray of the taskbar and the settings dialog of the HDSPe RayDAT comes up. The clear structured, easy to understand window plus the unique informative status windows for input signal, clock mode, sample rate and time code make your work with the card to a real pleasure. With a simple mouse click you gain access to the full power of your card.
When working with several digital sources it is not only necessary that these are all properly locked, they also have to be totally synchronized. Else drop outs and crackling occurs. RME’s exclusive SyncCheck © checks all input signals. In clock mode Master the synchronous operation to the internal clock is checked. This outstanding and unique technology helps to find errors immediately. The actual state of each input is displayed in the settings dialog.
RME’s unique SyncCheck and AutoSync technology has evolved into the new Intelligent Clock Control (ICC) of the HDSPe system. HDSPe RayDAT measures and displayes the frequency of all clock sources. Even word clock! Based on validity and current sample rate the system then decides which clock source should be used – fully automated and performed in hardware. With this the HDSPe system offers the most easiest handling of the present clocks, although having a lot digital inputs, plus the most advanced support when configuring the clock setup.
Tech Specs
- Supported sample frequencies: Internally 32, 44.1, 48, 64, 88.2, 96, 176.4, 192 kHz. Externally 28 kHz – 200 kHz.
- 8 buffer sizes/latencies available: 0.7 ms, 1.5 ms, 3 ms, 6 ms, 12 ms, 23 ms, 46 ms, 93 ms
- All settings changeable in realtime
- Automatic and intelligent master/slave clock control
- Enhanced Mixed mode: All inputs and outputs simultaneously operational
- Unsurpassed Bitclock PLL (audio synchronization) in ADAT mode
- TMS (Track Marker Support): Supports CD/DAT start-IDs and the read out of CD subcode
- DIGICheck, RME’s ultimate measurement, analysis and test tool
- Unique status windows for record and playback, showing mode and sample
- Super low jitter design: < 1 ns in all clock modes
Optional Expansions
Expansion Boards WCM/TEB | Word Clock Expansion: The optional 9632 Word Clock Module provides a galvanically isolated word clock input and two word clock outputs via BNC jacks.TDIF Expansion: HDSPe RayDAT can provide up to two TDIF interfaces when using the TEB module. |
HDSP TCO | Timecode Option Module adding further sync options: 1 x word clock I/O, 1 x video sync input (alternative to wc input), 1 x LTC I/O. |
Accessories
Още
Линк към сайта на производителя
Документи и драйвери
В кутията
-
RME HDSPe RayDAT – 36 Channel Digital Audio & MIDI PCI Express Card System
- HDSPe RayDAT PCI Express Card
- HDSPe RayDAT Expansion Board
- Digital Breakout Cable (XLR / Phono)
- MIDI Breakout Cable
- Internal Cable (3-Pin)
- Flat Ribbon Cable (14-Pin)
- 2 x Optical Cables (TOSLINK), 2 m (6.6′)
- Quick Info Guide
- RME Driver CD
Гаранция
2 години.
